VARIADOR TEAM CORALLY REVOC II "RACING FACTORY"160AMP RED

Features:

o For sensored and sensorless motors
o Manufactured with the highest grade components
o Ultra compact design
o Aluminum case for improved heat dissipation

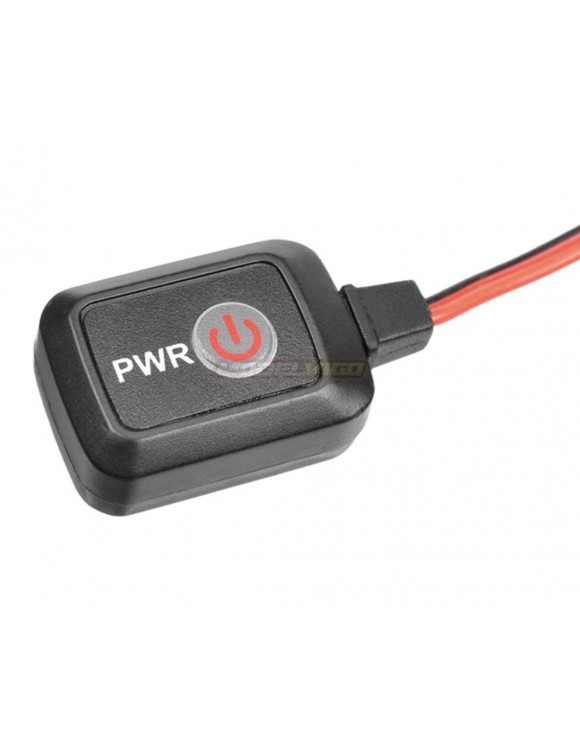

o Waterproof power switch
o Advanced boost - turbo timing system for improved acceleration performance
o Enhanced throttle - brake control function.
o 10 programmed profiles can be stored in the ESC
o High power 5A BEC
o Powerful TC Link software to test motor timing and advise the best ESC timing setting

Programming Features:

General Settings
o Running Mode
o Cut-off Voltage
o Overheat protection
o Motor Rotation
o Reverse Speed

Throttle Control
o Dead Band
o Punch Rate SW- Point
o Punch Rate 1
o Punch Rate 2
o Throttle Curve

Brake Control
o Initial Brake
o Drag Brake
o Brake Strength
o Brake Rate Control
o Brake Curve

Turbo Timing
o Turbo Timing
o Turbo Delay
o Turbo Slope

Power Specs

Application: 1/8 Off-Road - 1/8 On-Road
Cont. Current (A): 160A
Burst (A): 900A
Nr of Li-xx Cells: 2-6S
BEC: 6V 5A
Motor Type: Sensored - Sensorless
Motor Limits:
2S - 4S
=< 3000 KV o 4-6 Poles
2S - 6S
=< 2200 KV o 2-4 Poles
Resistance: 0.00020 ohm
Dimensions: 58x42x36mm
Weight: 122g
